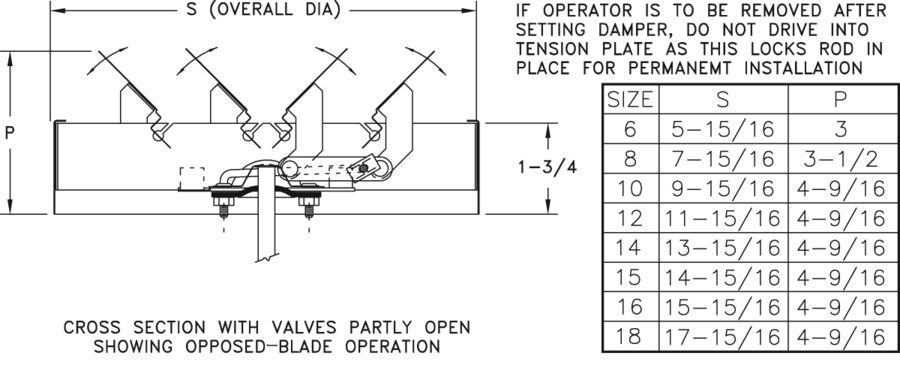

19 — Steel OBD Duct Mount Damper for Model 20 Ceiling Diffuser

Steel construction
Opposed-blade damper
Bright White finish
Duct-mount only

How to Specify

Provide the following information:

Model number
Diameter
Finish

Available sizes (inches)

Damper	6	8	10	12	14	15	16	18
S	5 15/16	7 15/16	9 15/16	11 15/16	13 15/16	14 15/16	15 15/16	17 15/16
P	3	3 1/2	4 9/16	4 9/16	4 9/16	4 9/16	4 9/16	4 9/16

Note: 3/16" Hex Damper handle (by others) will lock into position if inserted too far into damper

Submittal Data — 19 Steel Opposed Blade
