SRE — Steel Louvered Ceiling Diffuser, Flat Margin
- Steel construction
- Removable core
- Flat (extended) margin style
- Optional opposed-blade damper available for field installation, SR7
- Bright White enamel finish
How to Specify

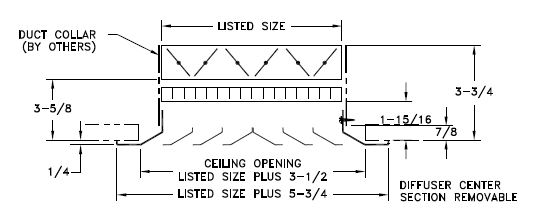

Use the engineering data files to determine the proper size to use for maximum performance. Refer to the submittal drawing for key product dimensions.
| Height | ||||||||
|---|---|---|---|---|---|---|---|---|
| Width | 6 | 9 | 12 | 15 | 18 | 21 | 24 | |
| 6 | • | • | • | • | • | • | • | |
| 9 | • | • | • | • | • | • | ||
| 12 | • | • | • | • | • | |||
| 15 | • | • | • | • | ||||
| 18 | • | • | • | |||||
| 21 | • | • | ||||||
| 24 | • |
